ONSET

ONSET

auto volume swell effect with high fidelity VCA

Regular price $299.00 USD
Regular price Sale price $299.00 USD
Sale Sold out
ONSET is currently sold out. Another batch is planned for production, sign up for our mailing list to be first to hear about availability.

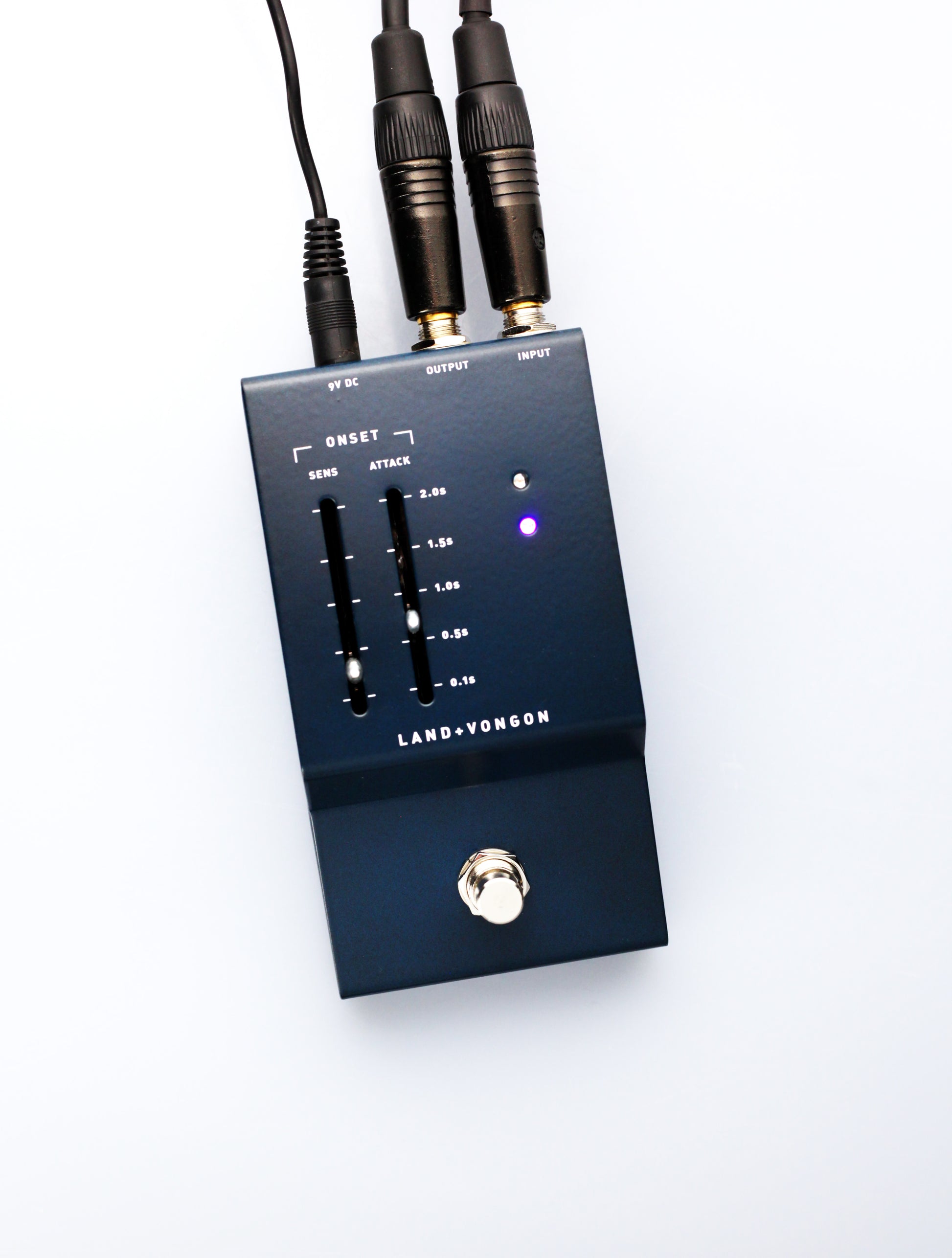

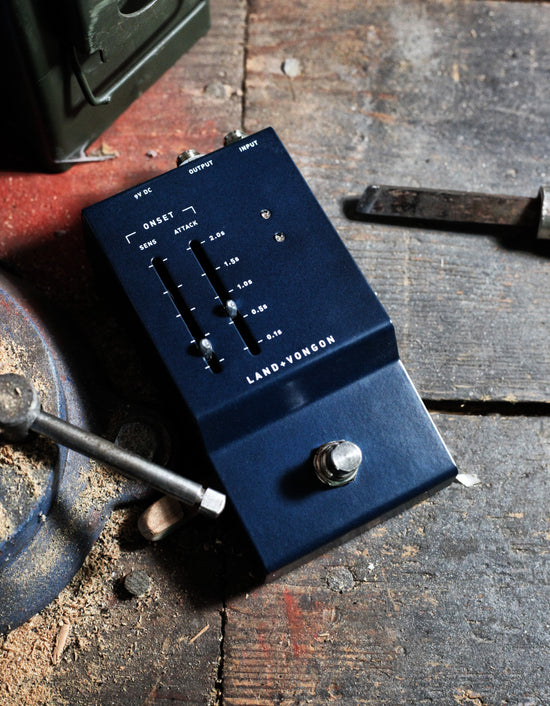

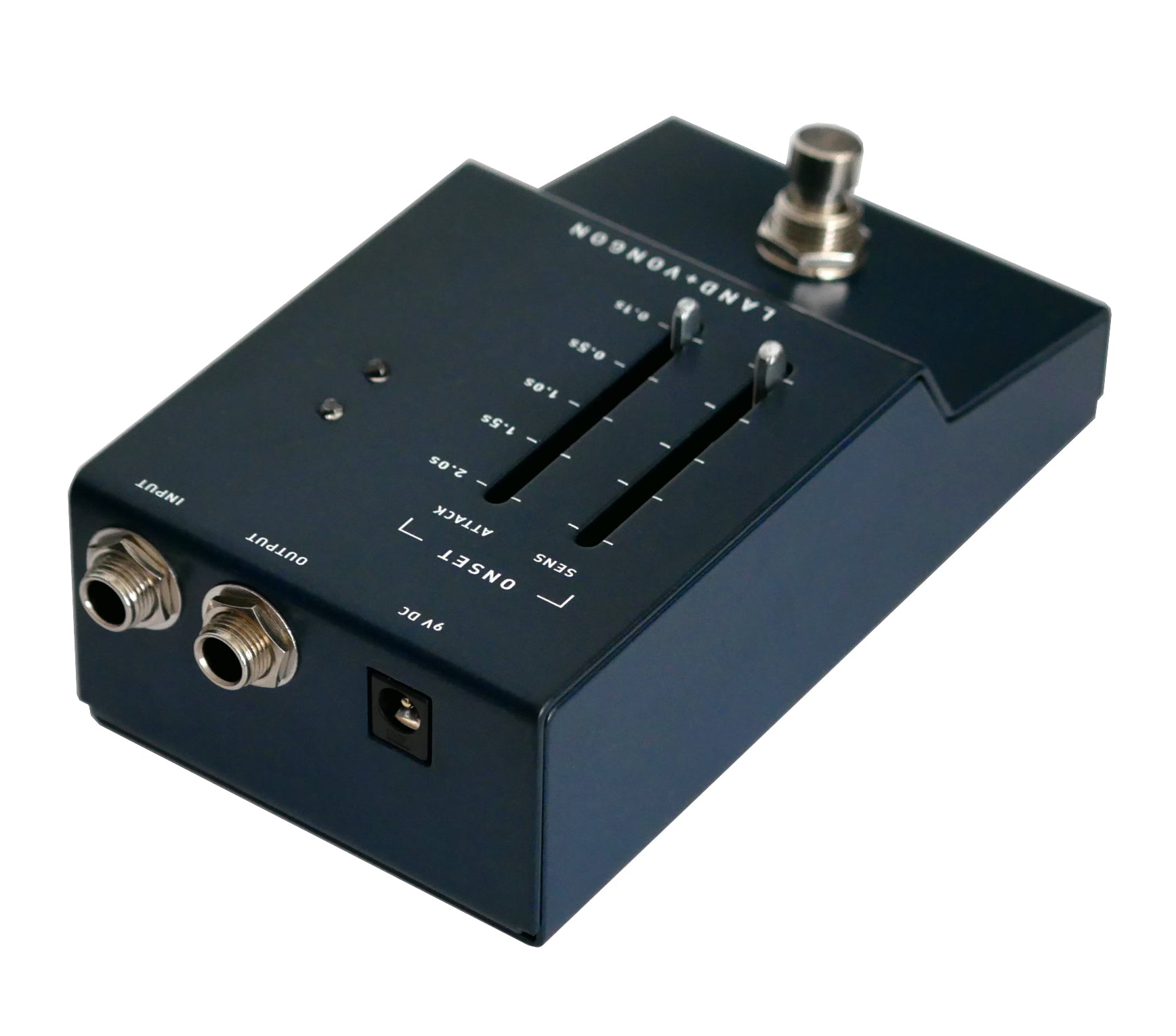

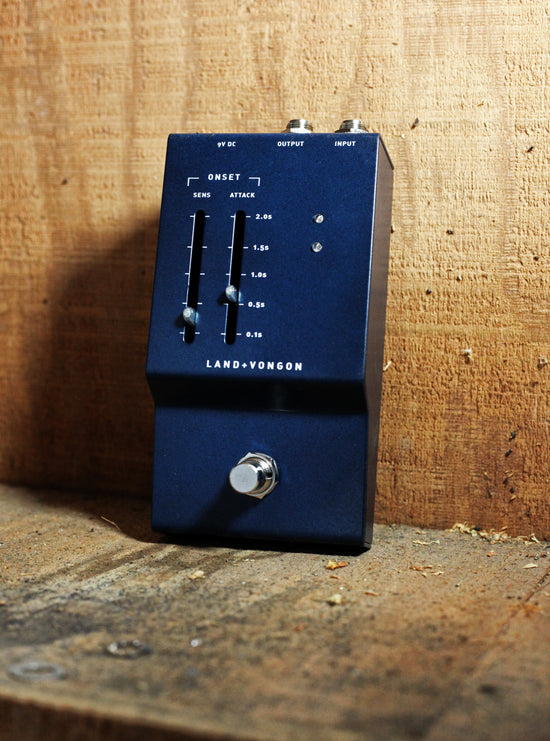

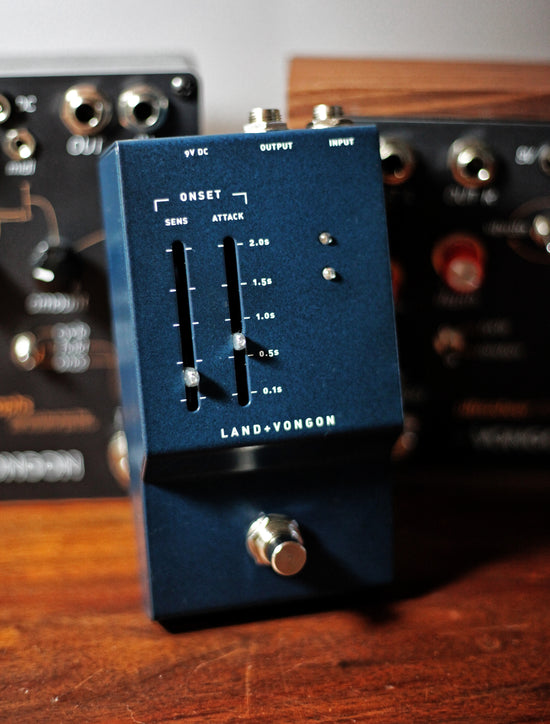

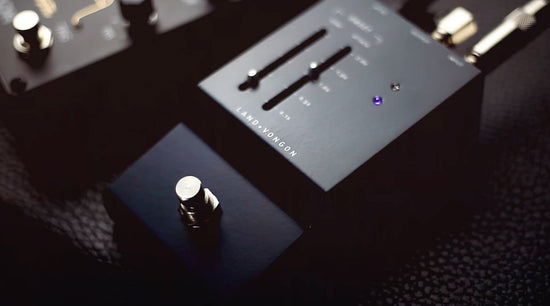

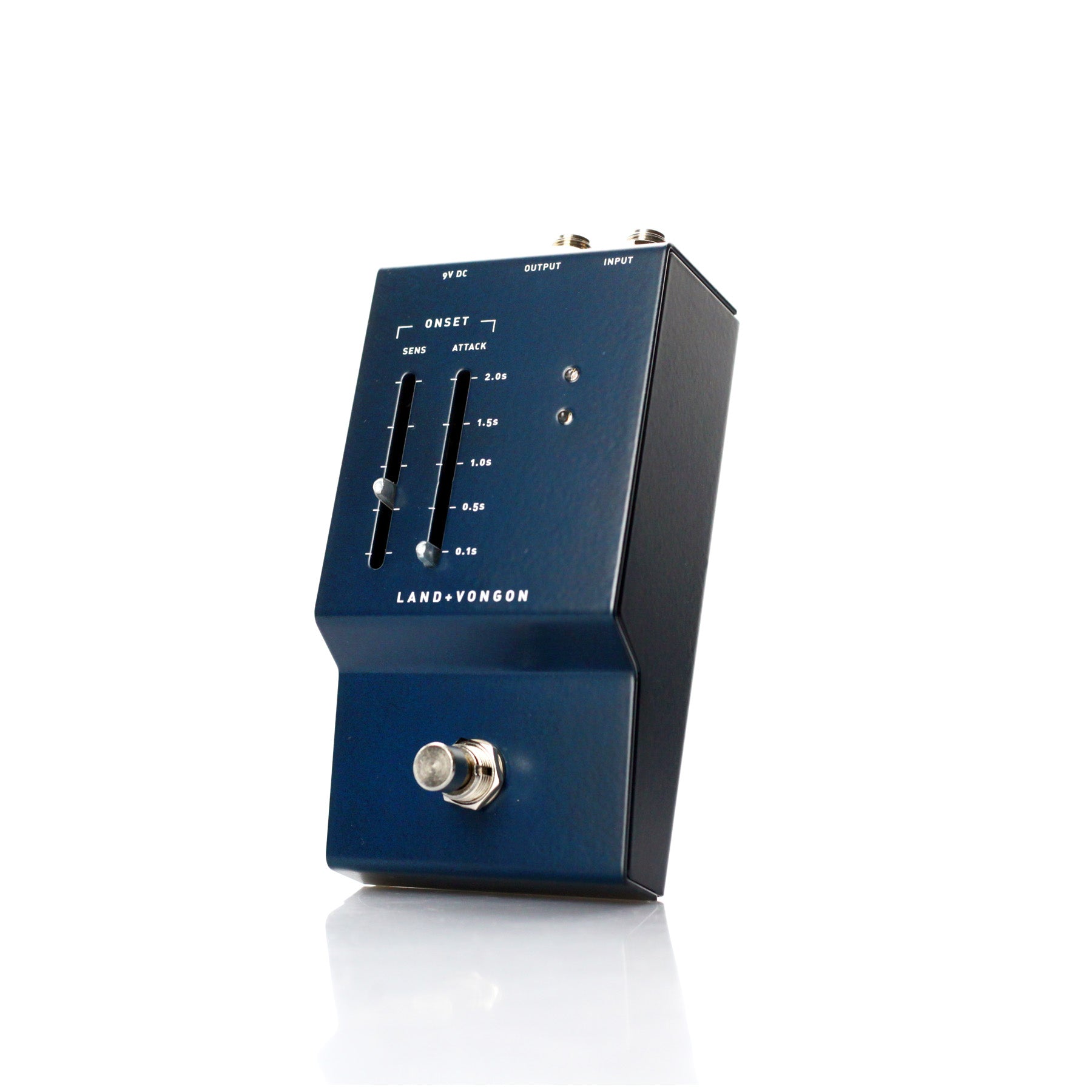

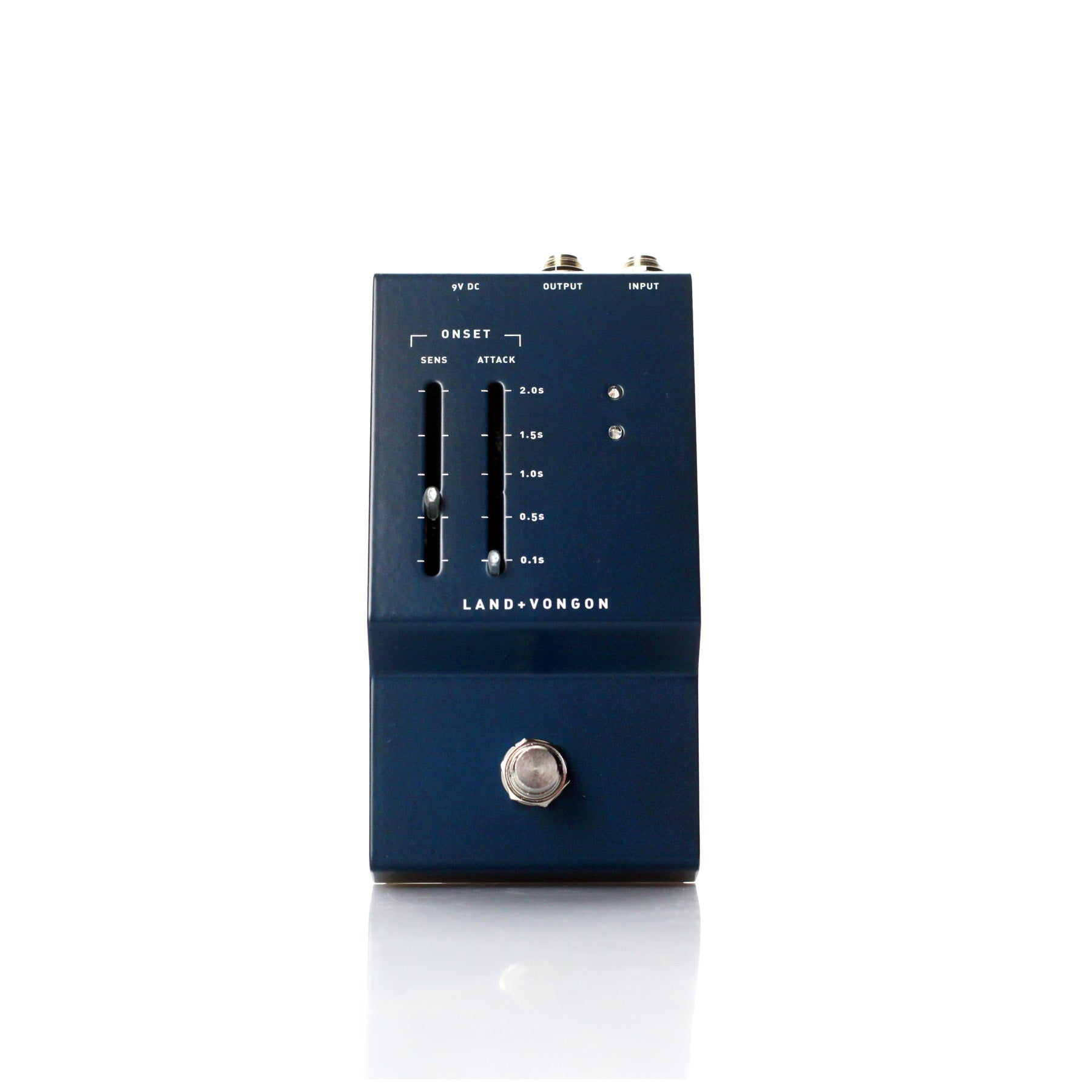

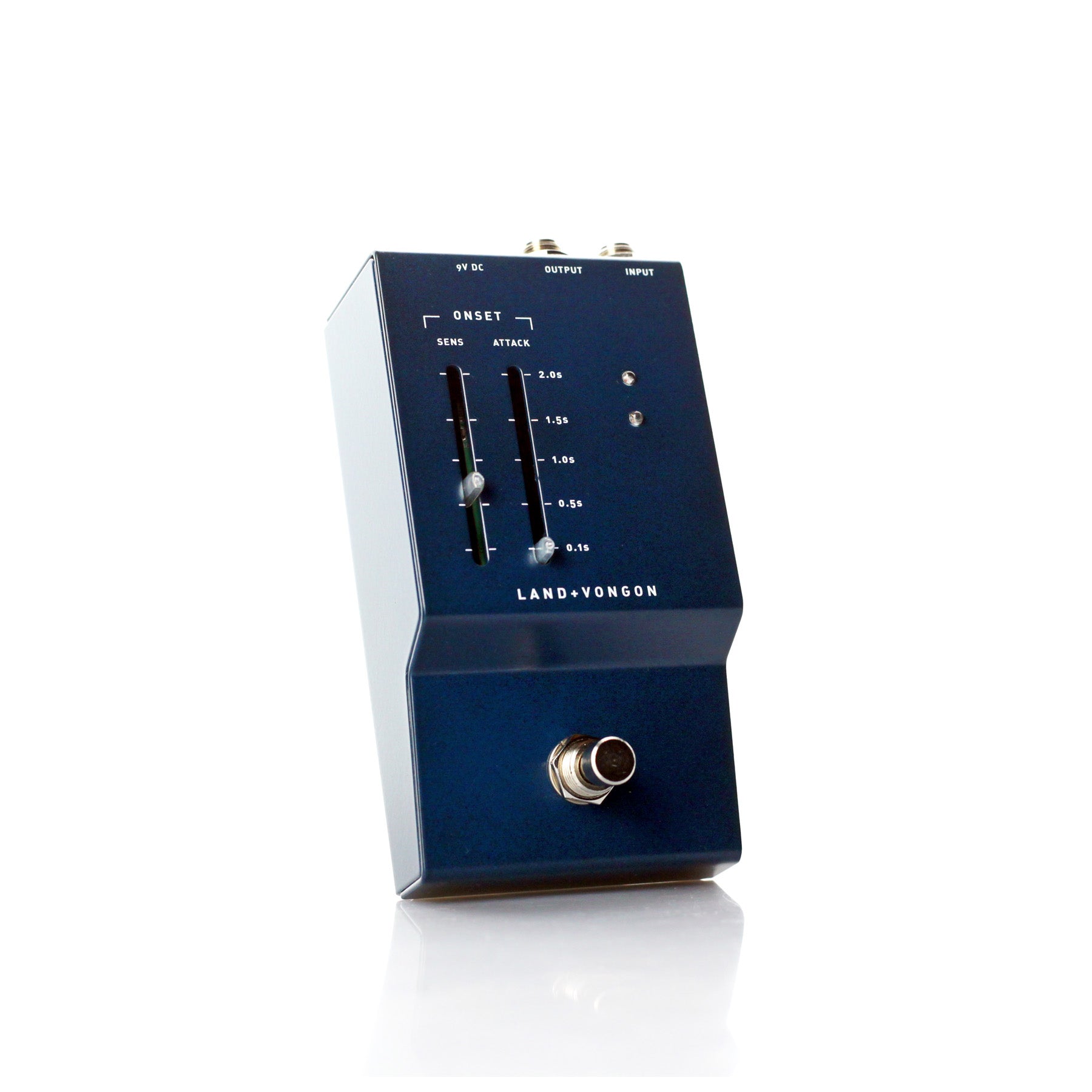

ONSET is an auto volume swell effect with rise times ranging from 100 milliseconds to 2 seconds. Two sliders are used to control the detection circuit's sensitivity and the volume fade length. The LEDs indicate the status of the volume swell, smoothly fading from purple to yellow. The signal path is an all-analog high fidelity VCA (voltage controlled amplifier) that is controlled by a digitally generated exponential envelope for the volume swell. When bypassed, a mechanical relay-based true bypass circuit is activated by the soft-touch foot switch

- 135mm x 73mm x 40mm
- 1/4" mono jacks
- Input impedance: 1MΩ
- Output impedance: 1kΩ
- 2.1mm DC Connector
- 9VDC center negative power
- Current Draw: 100mA
- Soft-touch foot switch
- True bypass

Collaboration product with our friends, Land Devices
